| 1. Fully enclosed with dual-side air inlets, effectively utilizing waste heat. Digital thermometers for inlet and outlet air precisely display temperature. 2. Large-diameter drum, fast drying speed, unique eccentric design of drum and door makes linen loading/unloading easy. 3. Axial airflow with large centrifugal fan allows heat to penetrate linen directly, ensuring full heat exchange. 4. Dual control by temperature and time ensures drying according to selected parameters. Optional: add humidity control. 5. Steam consumption ratio less than 2. Optional: condensate recycling to further save steam consumption. 6. Fan and drum use separate frequency control, improving drying speed and saving steam. 7. Unique cool air door structure allows quick cooling of linen after drying. |

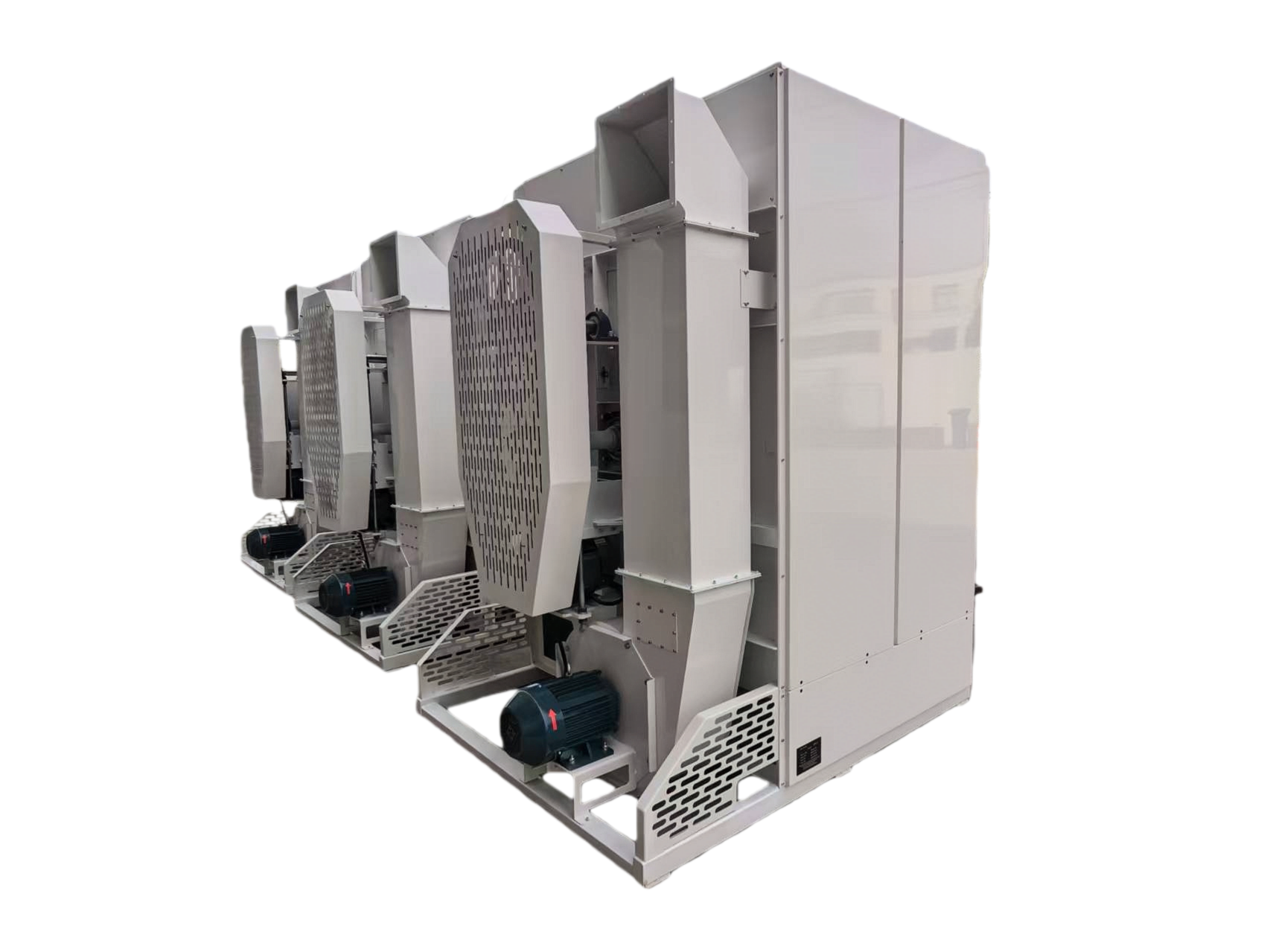

Energy Saving Steam Dryer
-
Product Features:
-
Product Description
| Specifications | ||||||||
| Model | Unit | FD2000 | ||||||
| Capacity | kg | 100 | ||||||
| Drum size | mm | Ф1460*1220 | ||||||
| Heating type | Steam | |||||||
| Motor Power | kw | 7.7 | ||||||
| Fan Power | kw | 5.5 | ||||||
| Steam inlet pipe | inch | G2" | ||||||
| Steam consumption | kg/h | 150 | ||||||
| Voltage | v/p/Hz | 415/3/50Hz | ||||||
| Weight | Kg | 1450 | ||||||
| Dimensions | mm | 1700*2300*2600 | ||||||
