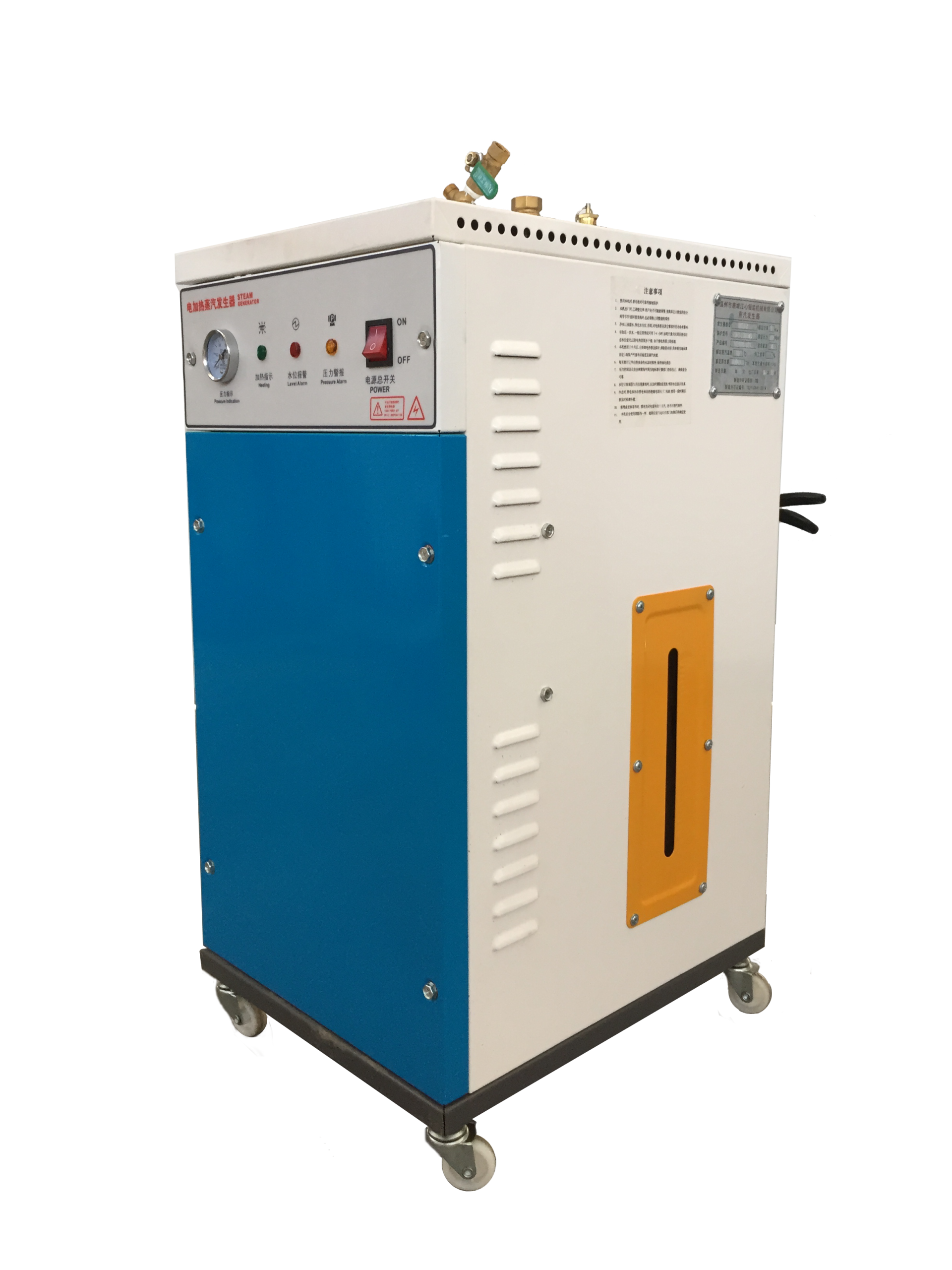

ZDF Series Steam Generator-- mini(portable) boiler
-
Product Features:
-
1, Safety valve and plug equipped with dual safety device to ensure the safe use of products. 2, Equipped with automatic pressure control device to maintain a stable pressure. 3, The water level gauge and liquid level controller, can automatically add water, automatic water supply and stable water level.
Product Description
| Specifications | ||||||||
| Model | unit | ZDF-3 | ZDF-6 | ZDF-9 | ZDF-12 | ZDF-18 | ZDF-24 | |
| Pressure(Mpa) | Mpa | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | |
| Water Capacity | L | 18 | 28 | 28 | 28 | 28 | 48 | |
| Evaporating capacity(kg/h) | kg/h | 4.3 | 8.6 | 12.9 | 17 | 25 | 34.4 | |
| Work Voltage (V) | v | 220/380 | 220/380 | 380 | 380 | 380 | 380 | |
| Pump power (kw) | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | |
| Electric power (kw) | kw | 3 | 6 | 9 | 12 | 18 | 18 | |
| Dimension(mm) | mm | 560×370×810 | 780x450x1100 | 630x560x1360 | 630x560x1360 | 720x650x1510 | 750x680x1520 | |
| N.W. | KG | 30 | 70 | 80 | 80 | 128 | 156 | |
