Overview

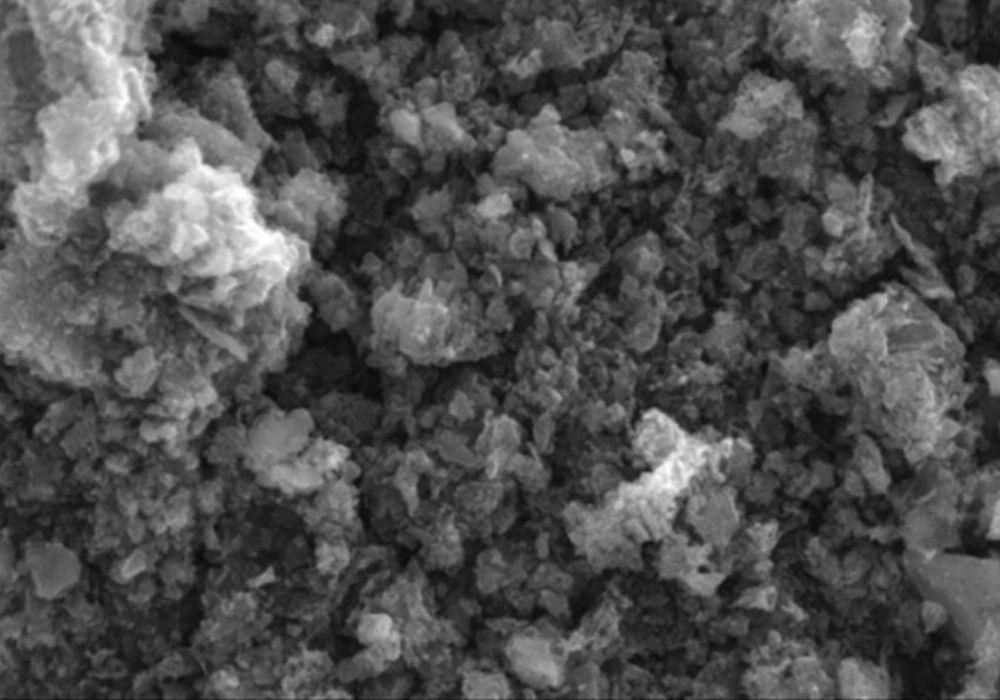

Ultra-high-surface-area activated carbon engineered for electric double-layer capacitors (EDLCs) and electrochemical capacitors. Features a 3D interconnected mesopore network with precisely controlled pore diameter, balancing ion-accessible surface area with rapid transport kinetics. Comprehensive batch-level certification ensures electrode manufacturers maintain consistent slurry rheology and coating quality across production campaigns.
Specification
| Technical Specifications | PSD-16 | PSD-18 | Unit |
|---|---|---|---|
| Specific Surface Area | >1600 | >1800 | m²/g |
| Pore Volume | >0.6 | >0.8 | cm³/g |
| Tap Density | 0.38~0.45 | 0.36~0.38 | g/cm³ |
| Average Particle Size (D50) | 4~6 | 4~6 | μm |
| Ash Content | ≤0.3 | ≤0.3 | % |
| Average Pore Diameter | 1.8±0.1 | 1.8±0.1 | nm |
| pH Value | 6~8.5 | 6~8.5 | — |
| Al Content | ≤50 | ≤50 | ppm |
| Fe Content | ≤50 | ≤50 | ppm |
| Ni Content | ≤5 | ≤5 | ppm |
| Cu Content | ≤5 | ≤5 | ppm |
Key application areas
- Supercapacitors (EDLCs) for grid frequency regulation
- High-power energy storage electrodes
- Regenerative braking systems
- Pulse-power military and aerospace applications
- Electrochemical capacitors requiring long cycle life
Electrochemical Stability
- Ultra-low metal impurities: aluminium and iron held below 50 ppm; nickel and copper below 5 ppm. This prevents parasitic side reactions that degrade cycle life, supporting over 100,000 charge/discharge cycles.
- PSD-16: BET >1600 m²/g and pore volume >0.6 cm³/g for standard high-power applications.

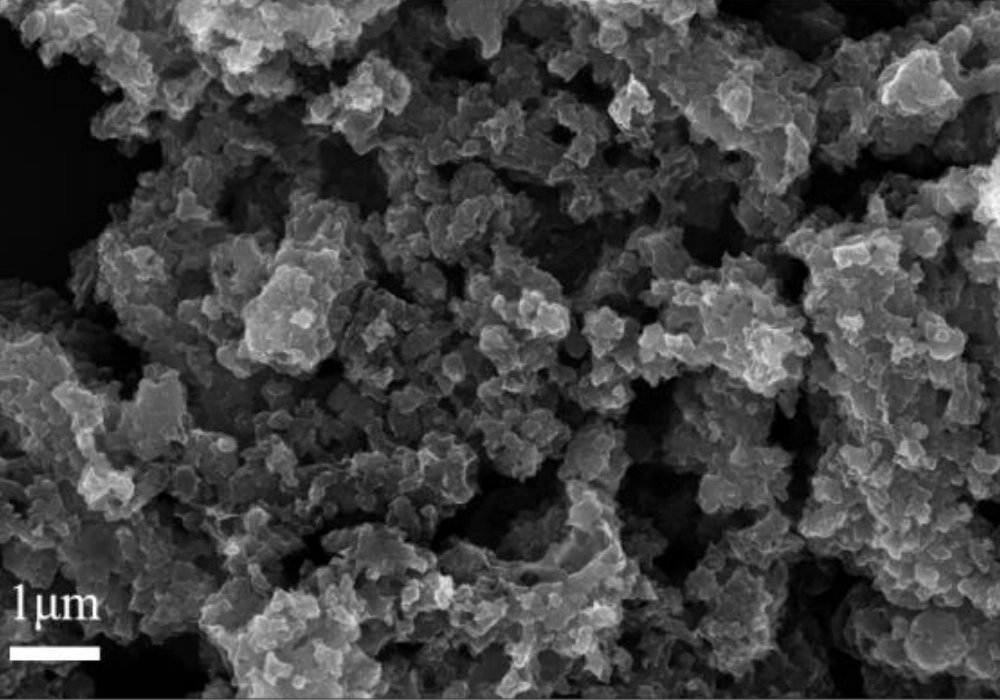

- PSD-18: BET >1800 m²/g and pore volume >0.8 cm³/g for maximum energy density in premium capacitors.
- Narrow particle distribution and high tap density optimize electrode packing and reduce binder demand.
- Batch-level BET and pore-distribution certification ensures consistent slurry rheology—critical for defect-free electrode coating.
